User Management and Access Control

RBAC

Lens AppIQ offers a comprehensive Role-based access control system (RBAC) designed to provide users fine-grained access to resources within your organizations.

All potential permissions that a user can have can be visualized by executing the command

lapps permission list

+----------------------------------+--------------------------------------------+
| Name                             | Contexts                                   |
+----------------------------------+--------------------------------------------+
| *                                | organization                               |
| app                              | organization, app, team, framework         |
| app.admin                        | organization, app, team, framework         |
| app.admin.quota                  | organization, app, team, framework         |
| app.admin.routes                 | organization, app, team, framework         |
| app.admin.unlock                 | organization, app, team, framework         |
| app.autoscaling                  | organization                               |
| app.build                        | organization, app, team, framework         |
| ...more                          |                                            |
+----------------------------------+--------------------------------------------+

Administrators can define roles using the aforementioned permissions and assign them to users within different contexts to control the access each one of them has to specific resources

Such flexibility comes with a price, as composing the right set permissions for your teams and users might be a bit challenging at first; therefore, we decided to create an opinionated approach, using common concepts in the industry, to allow administrators to quickly onboard users based on the role they play within their own organization.

The aforementioned approach defines three "profiles" that can be assigned to onboarded users within your organization to scope the resources they have access to and the actions they can perform. Such roles are detailed below:

Admin

User enabled to manage the whole organization. Has access to all resources within an org and can perform all actions listed when running lapps permission list. This type of user can manage infrastructure, applications, and users.

RBAC Roles: Shipa-Admin

Access: Role scoped to the whole organization. The user can see any resource from any available team, which means that the user can manage any cluster, framework, app, volume, etc created by any user within the same organization

+------------------+--------------+----------------------+
| Role             | Context      | Permissions          |
+------------------+--------------+----------------------+
| Shipa-Admin      | organization | *                    |
+------------------+--------------+----------------------+

DevOps

User enabled to manage infrastructure, establish policies and oversee applications within a given team.

RBAC Roles: Shipa-DevOps, Shipa-Org-Shared

Access: Role scoped to a set of teams. Assigning this role requires specifying a team(s) to which a user should be appended. Once the assignment is completed, the user should be able to manage only the resources that users within the same team have created. Other resources belonging to other teams won’t be accessible for this user.

+------------------+--------------+----------------------+
| Role             | Context      | Permissions          |
+------------------+--------------+----------------------+
| Shipa-DevOps     | team         | app                  |
|                  |              | cluster              |
|                  |              | framework            |
|                  |              | node                 |
|                  |              | plan                 |
|                  |              | team                 |
|                  |              | volume               |
|                  |              | volume-plan          |
+------------------+--------------+----------------------+
| Shipa-Org-Shared | organization | role.read            |
+------------------+--------------+----------------------+

Developer

User enabled to manage applications within a given team

RBAC Roles: Shipa-Developer, Shipa-Org-Shared

Access: Role scoped to a set of teams. Assigning this role requires specifying a team(s) to which a user should be appended. Once the assignment is completed, the user should be able to manage applications only within the same team and read the resources listed above that other DevOps have created for them.

+------------------+--------------+----------------------+
| Role             | Context      | Permissions          |
+------------------+--------------+----------------------+
| Shipa-Developer  | team         | app                  |
|                  |              | cluster.read         |
|                  |              | framework.read       |
|                  |              | node.read            |
|                  |              | plan.read            |
|                  |              | volume-plan.read     |
|                  |              | volume.read          |
|                  |              | volume.update.bind   |
|                  |              | volume.update.unbind |
+------------------+--------------+----------------------+
| Shipa-Org-Shared | organization | role.read            |
+------------------+--------------+----------------------+

This structured approach can be visualized in the following illustration, and it encourages admins to split resource access across multiple teams.

The roles described above are available in each installation/account out-of-the-box, and can be used right away by the Admin of the installation (is using a Self-hosted version), the Administrator of your organization (if using Lens AppIQ), or by any user assigned the pre-built profile of "Admin" through this opinionated RBAC.

1. RBAC support from the Dashboard

To simplify this process even further, the dashboard shipped with Shipa exposes a friendly UI that allows Admins to use this opinionated RBAC approach.

1.1. Users onboarding and Role assignment

Let’s take the following guided tutorial to emulate the scenario illustrated above.

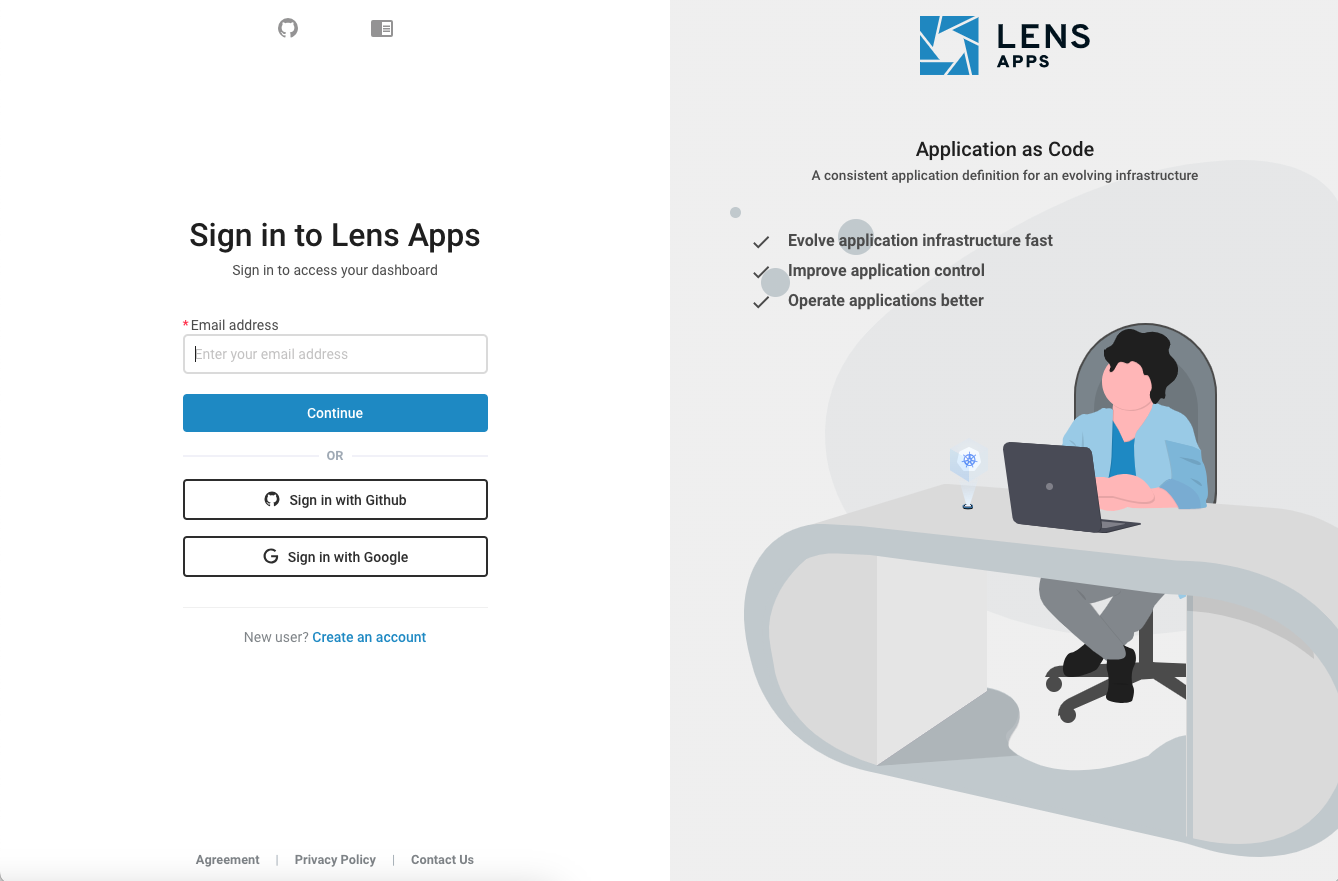

1.1.1. Create an account on Lens AppIQ and sign in at apps.lenscloud.io


1.1.2. Go to the User management section and make sure you have admin privileges.

1.1.3. Click the button Invite users and enter the email addresses of your new users. In our case, test@mirantis and [email protected]. Immediately select the role you want to assign to all users, and if required, the team you want them to belong to:

 1.1.4. That’s it! Your users have been rightfully configured to manage scope resources within the team assigned and won’t have visibility over resources other users create out of the given team. Repeat the process with any new user you want to invite to your organization

📘

Note

New users need to complete a sign-up process following the instructions sent to their email upon invitation.

1.2. How to see my own roles?

If you are unclear on what roles and permissions have been assigned to you as a user, visit your profile page and go through the section called Roles. To do so:


1.2.1 Sign in to your dashboard and locate your profile page on the top right corner

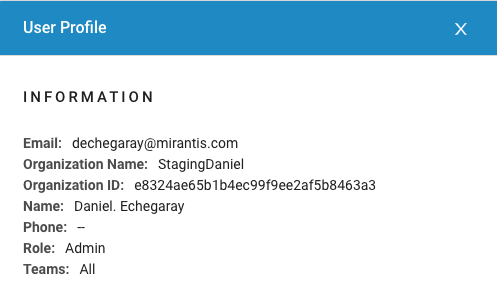

1.2.2. Click on the profile icon to open your details. All your information will be displayed there:

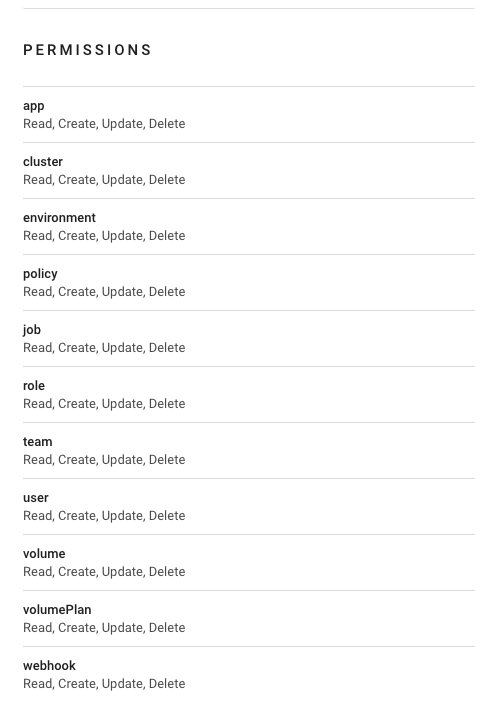

1.2.3. Check the permissions of a given Role by hovering over the Details button

1.3. Extending pre-built roles

All pre-built roles that support this opinionated approach, can be extended by adding more permissions to them when needed. To do so, you can either use our CLI or the dashboard (recommended), and it is as simple as following the steps shown below:

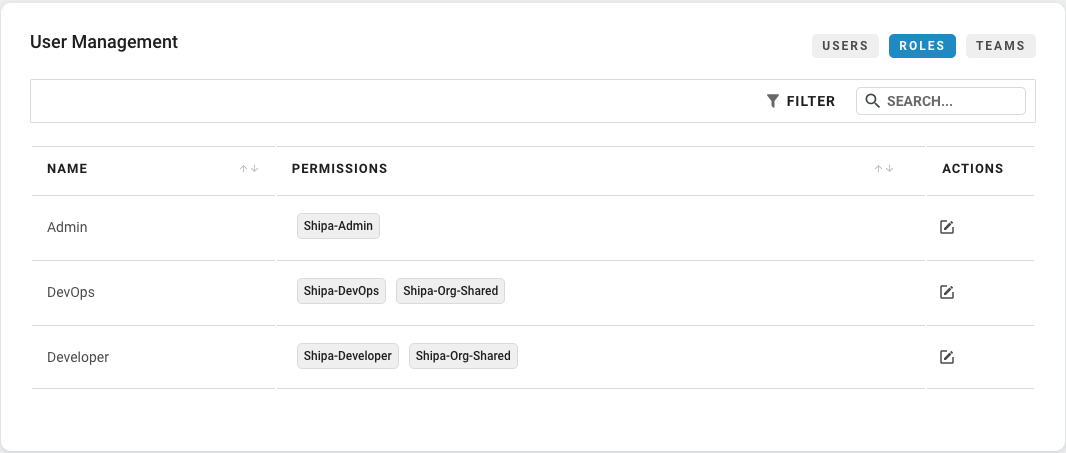

1.3.1. Sign in as an Admin user and visit the section User Management. Click the Roles tab


1.3.2. Edit the user role of your preference. As an example let’s click the Developer role

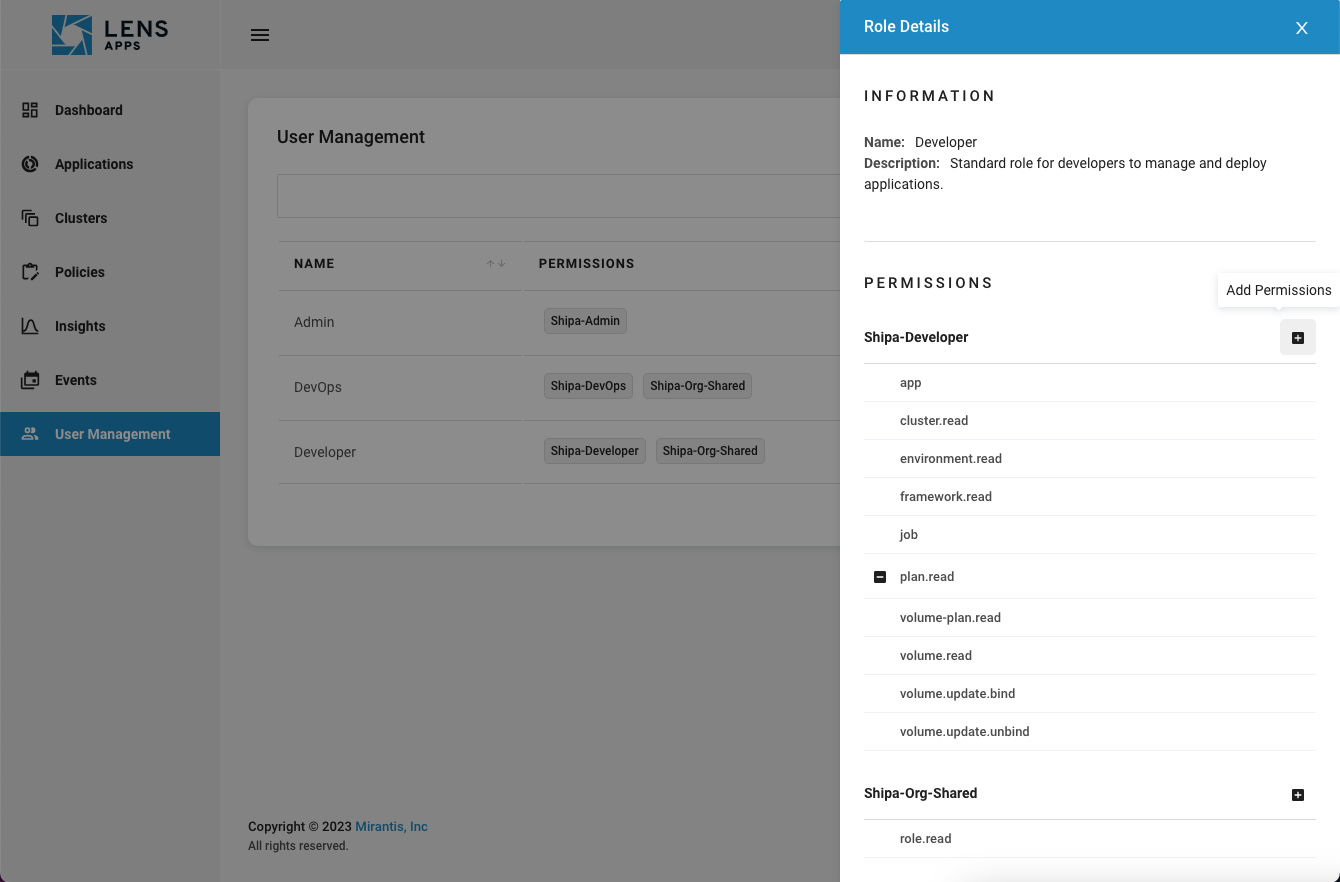

1.3.3. Locate the plus icon next to the role Shipa-Developer and click on it

📘

Wildcard permissions

Permissions already covered by wildcards will be disabled as they enable actions that the user can already do. For example, if the role has the permission app assigned, all child permissions are included .i.e.: app.create, app.delete, app.build, etc

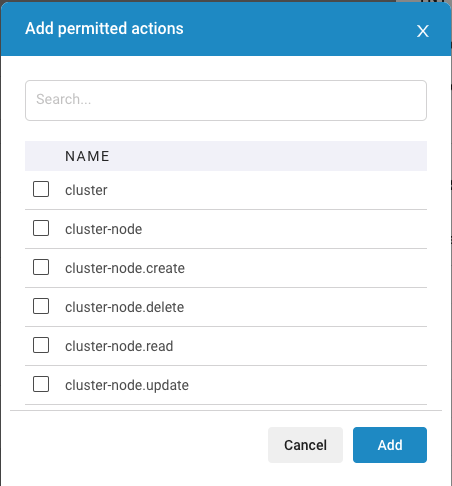

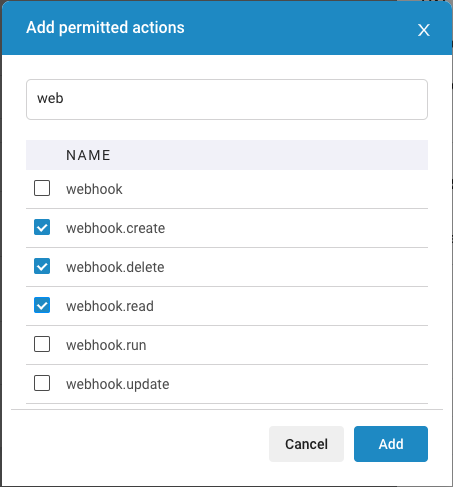

1.3.4. Locate and select the permissions of your preference and click the button Add. In this case, we will filter the webhook permissions, and we will select the following ones:


1.3.5. The permissions selected are added to your role.

📘

Inmutable permissions

Notice that any extra permission added to the role appends a "remove" icon next to it, indicating that the permission can be removed from the role at any point in time. However, the rest of the permissions (originally added to the role) do not contain the same icon, hinting to the user that they cannot be removed. This constraint guarantees that our opinionated approach keeps its integrity no matter the mutations the users perform to the role


1.3.6. To remove one permission, simply click the minus button and confirm the operation


1.3.7. That’s it, your role has been updated and now your developers can create and read webhooks. Use the same approach to add any permission of your preference to any of our available roles Shipa-Developer or Shipa-DevOps

1.4. Considerations when extending pre-built roles

• Not all permissions available in lapps permissions list are compatible with a given role as they depend on supporting the user context. Since Shipa-Developer and Shipa-DevOps are created in the context of a team, only the permissions listed with the team string next to it will be valid for them. This filter is automatically done by the dashboard when mutating existing roles, but if an admin is using the CLI it should keep it in mind

lapps permission list
+----------------------------------+--------------------------------------------+
| Name                             | Contexts                                   |
+----------------------------------+--------------------------------------------+
| cluster                          | organization, team, framework, cluster     |
| cluster.create                   | organization, team, framework, cluster     |
| cluster.delete                   | organization, team, framework, cluster     |
| cloud-credentials                | organization, user                         |
| framework                        | organization, framework, team              |
| framework.create                 | organization, framework, team              |
+----------------------------------+--------------------------------------------+

📘

Context contraint

In the example above, you can see how the cluster.create permissions exist within the context of team but cloud-credentials are only supported in the context of organization and user. That is the constraint you should keep in mind when looking to extend your roles.

• Both profiles, DevOps and Developer, have a shared RBAC role assigned to them called Shipa-Org-Shared. We created it to enable both types of users to read their own roles when checking their profile information. Such a role uses the context of organization, so adding permissions to it might provide access to undesired resources. We recommend updating it only if the administrator understands clearly how our RBAC model works.

2. RBAC support from the CLI

Using the pre-built roles available on Lens AppIQ is also supported when consuming the CLI. Assuming we have a similar scenario to the one described in Diagram 1, let’s see how we can assign a Developer role to one of our existing users

2.1. Users onboarding and Role assignment


2.1.1. Sign in as an Admin and list your existing roles

lapps role list

You should see the pre-built roles available there:

+------------------+--------------+----------------------+
| Role             | Context      | Permissions          |
+------------------+--------------+----------------------+
| AllowAllOrg      | organization | *                    |
+------------------+--------------+----------------------+
| Shipa-DevOps     | team         | app                  |
|                  |              | cluster              |
|                  |              | framework            |
|                  |              | node                 |
|                  |              | plan                 |
|                  |              | team                 |
|                  |              | volume               |
|                  |              | volume-plan          |
+------------------+--------------+----------------------+
| Shipa-Developer  | team         | app                  |
|                  |              | cluster.read         |
|                  |              | framework.read       |
|                  |              | node.read            |
|                  |              | plan.read            |
|                  |              | volume-plan.read     |
|                  |              | volume.read          |
|                  |              | volume.update.bind   |
|                  |              | volume.update.unbind |
+------------------+--------------+----------------------+
| Shipa-Admin      | organization | *                    |
+------------------+--------------+----------------------+
| Shipa-Org-Shared | organization | role.read            |
+------------------+--------------+----------------------+

2.1.2. Get your organization ID as you will need it for assigning one of the rules. Run the command:

lapps user info

2.1.3. You should see a role AllowAllOrg with an ID next to the organization context, keep that ID present as it constitute your organization ID

Email: [email protected]
Roles:
	AllowAllOrg(organization <<orgId>>)

2.1.4. Assuming that all previous components have been already created (users, teams, plans, etc) as described before, and assuming that [email protected] does not have current roles assigned, run the following command:

lapps role assign Shipa-Developer [email protected] dev
lapps role assign Shipa-Org-Shared <<orgID>>

Note: If your user contains previous roles assigned, for example, a different team, or the wrong role Shipa-DevOps you will need to dissociate the role first to avoid having wrong permissions:

lapps role dissociate Shipa-DevOps dev
lapps role dissociate Shipa-Developer <<wrongTeam>>

2.2. Extending pre-built roles

Extending existing roles is also available through the dashboard as long as the permissions you are trying to remove are not any of the default permissions available for the reserve Roles.


To add permissions to existing roles, run the following command proving all the permissions of your preference:

lapps role permission add Shipa-Developer webhook.create webhook.delete webhook.read

📘

Note

Remember that as mentioned in Section 1, not all permissions are compatible with a given context. Make sure the permissions added to the command support the context that the Role internally refers to.

To remove permissions from existing roles, run the following command providing the permissions you want to remove:

lapps role permission remove Shipa-Developer webhook.create
