Setup Lens AppIQ

Setting up Lens AppIQ is easy. We'll register, and install a few components inside your Kubernetes cluster when you connect it to Lens AppIQ and make sure that the CLI is set up with the correct API endpoint target.

Register

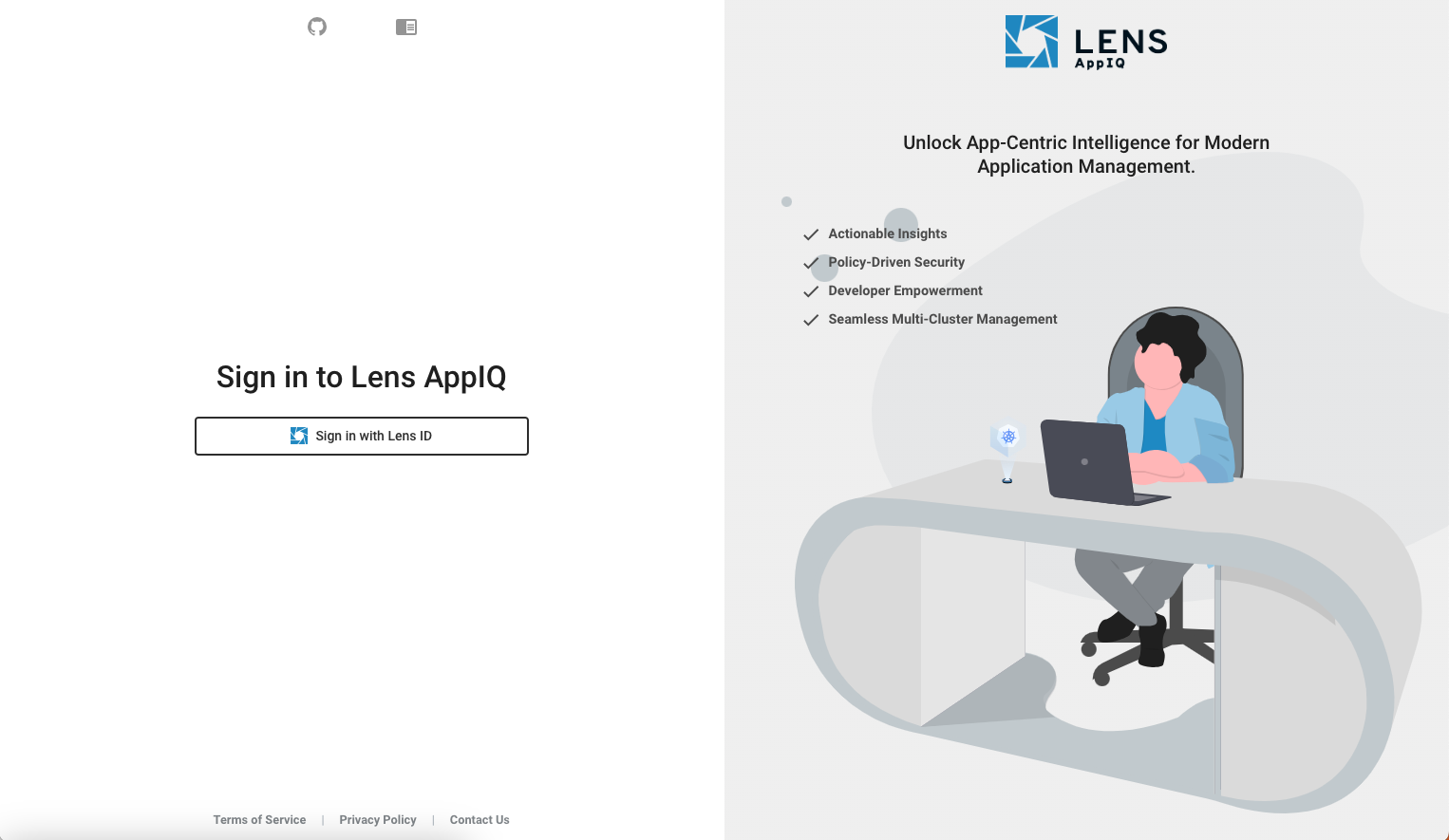

Please open Lens AppIQ in your favorite browser and create an account by clicking the button "Sign in with Lens ID". Follow the instructions on the screen to create your own organization and access your dashboard

Next, connect a Kubernetes cluster to manage your apps using Lens AppIQ.

Connect a Cluster

Once signed up, the first action needed is to connect a Kubernetes cluster of your choice. Lens AppIQ will need access to the Kubernetes API Endpoint.

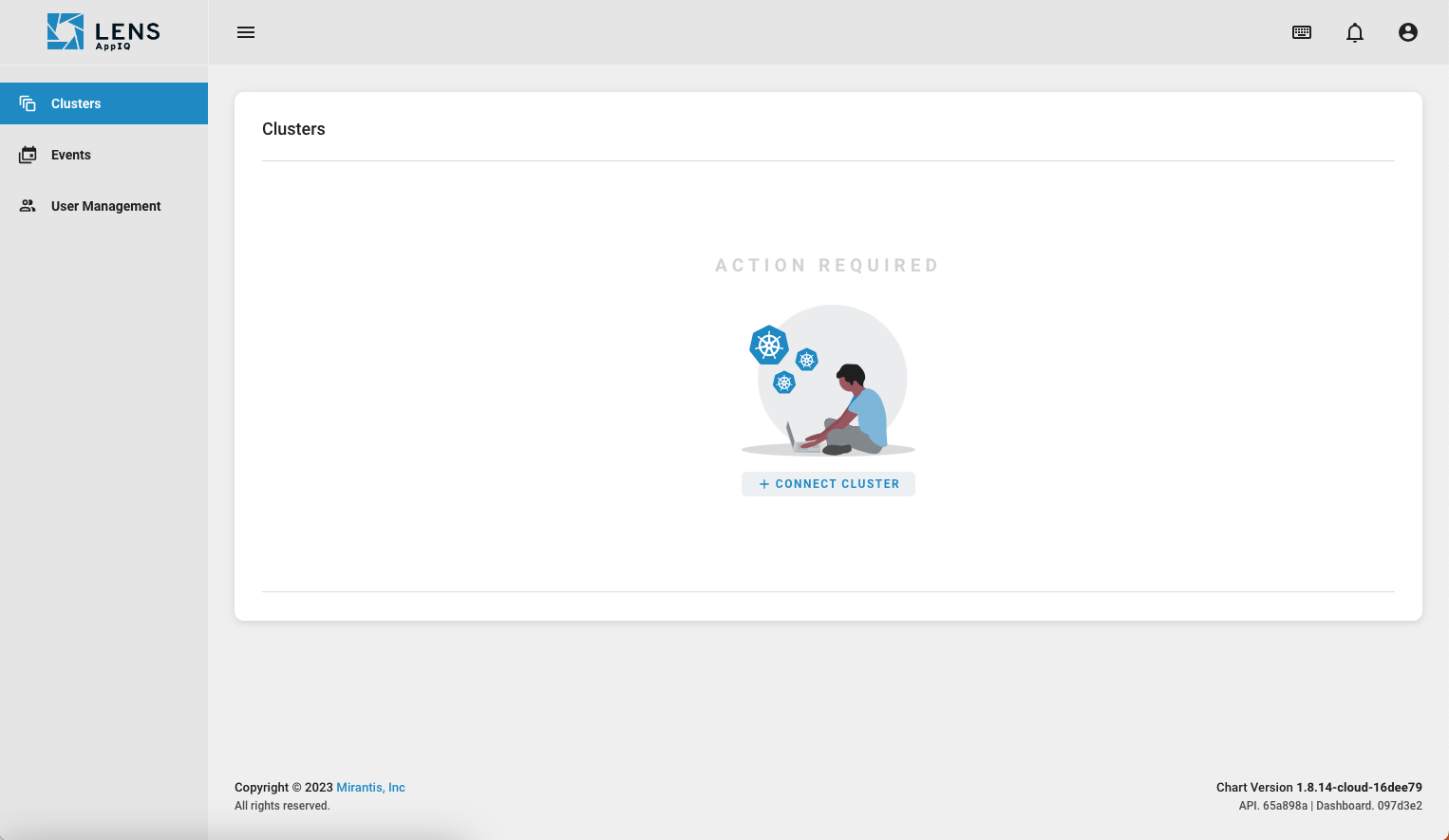

In the left-hand navigation in Clusters, click the button + Connect Cluster.

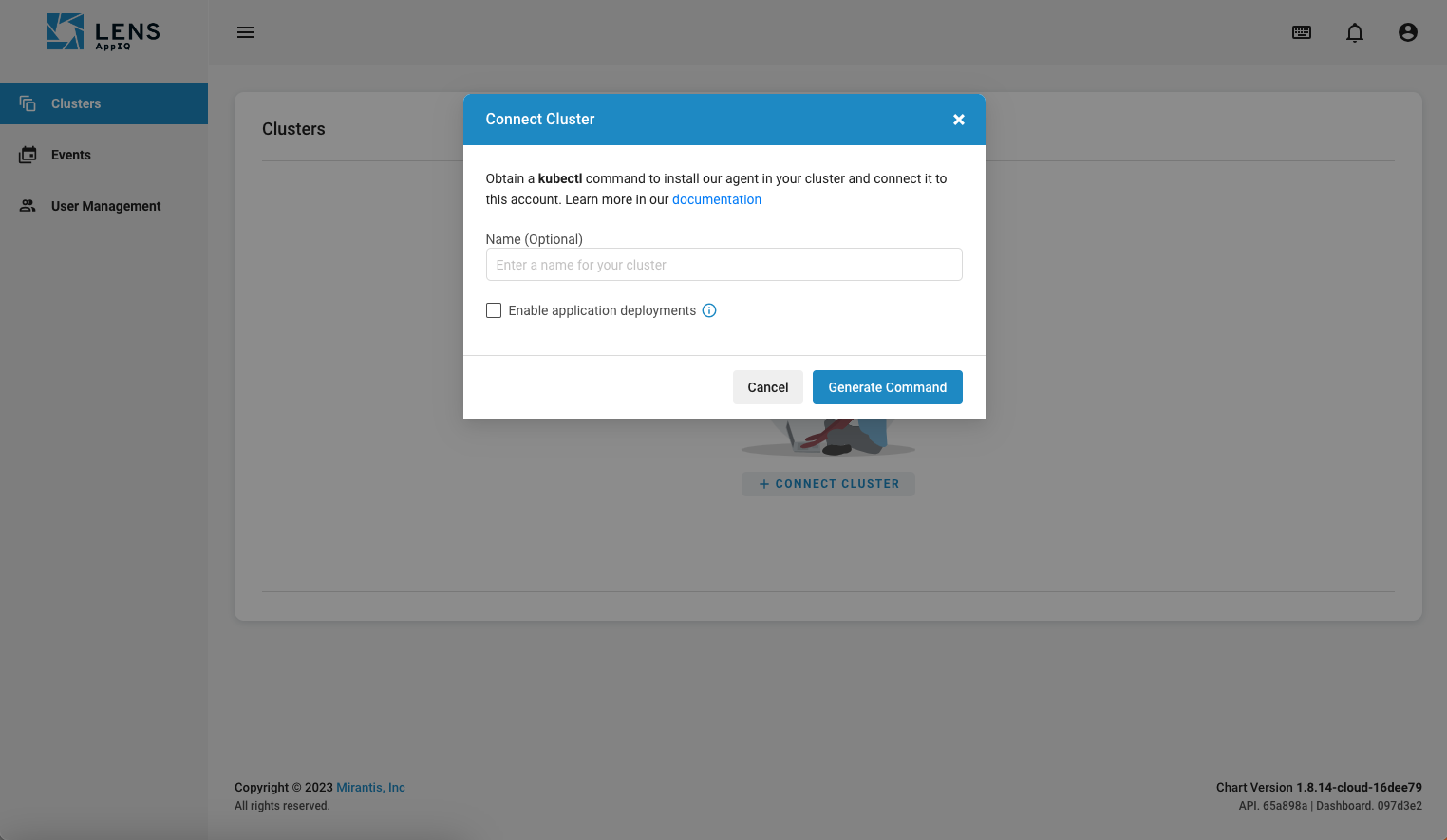

Optionally enter a name for your cluster and click the button Generate Command. A Magic Link will be created for you to connect your Kubernetes cluster.

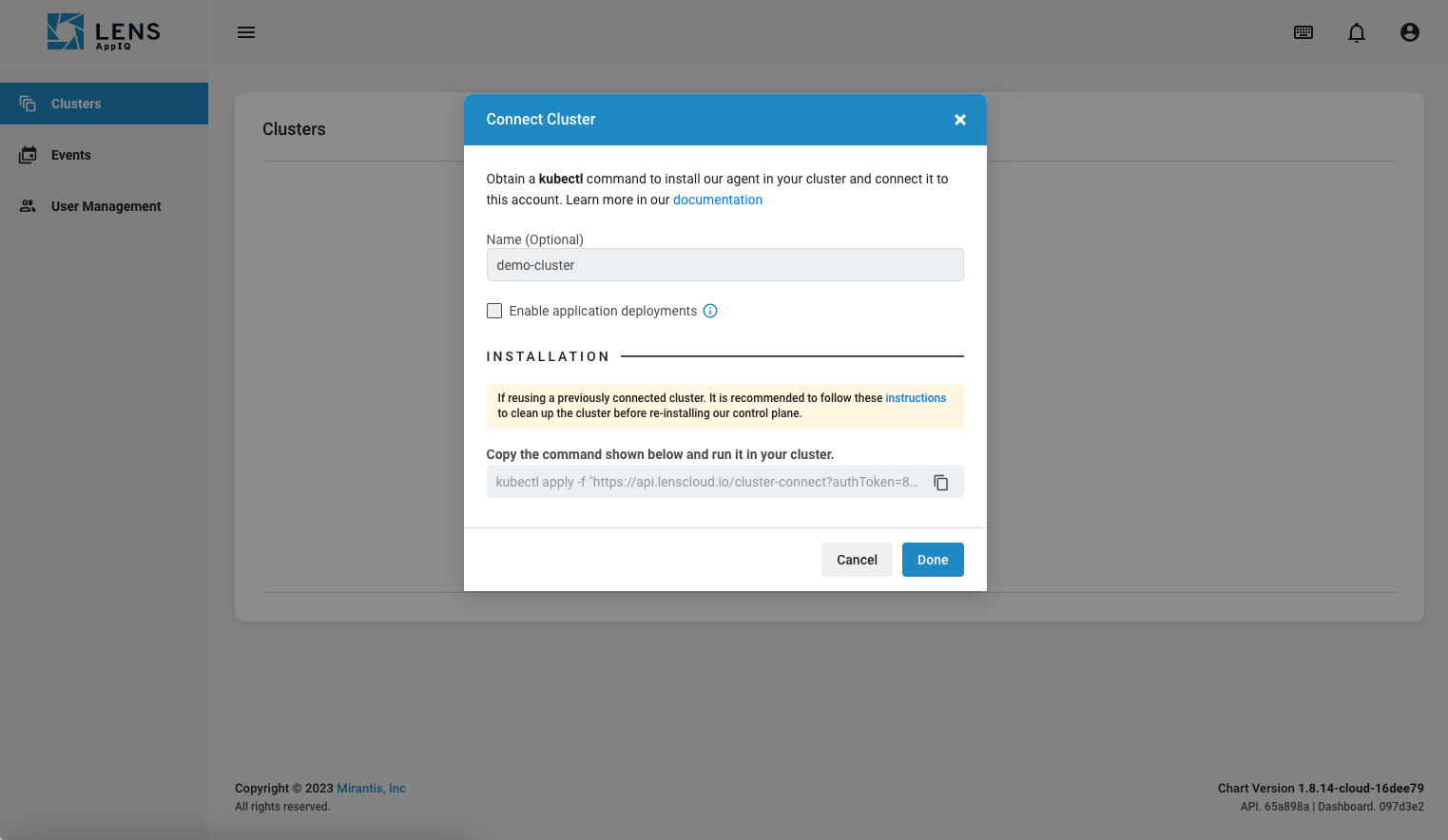

Copy and paste the kubectl command into your terminal (while being within the desired cluster context) and execute the command.

$ kubectl apply -f "https://api.lenscloud.io/cluster-connect?authToken=..."
namespace/shipa created
secret/sh.helm.release.v1.shipa-agent.v1 created
serviceaccount/shipa-agent created
secret/shipa-agent created
configmap/shipa-agent-config created
clusterrole.rbac.authorization.k8s.io/shipa-agent-general created
clusterrole.rbac.authorization.k8s.io/shipa-agent-autodiscovery-shipa-controller created
clusterrole.rbac.authorization.k8s.io/shipa-agent-autodiscovery-helm created
clusterrole.rbac.authorization.k8s.io/shipa-agent-containermetrics-busybody created
clusterrole.rbac.authorization.k8s.io/shipa-agent-containermetrics-helm created
clusterrolebinding.rbac.authorization.k8s.io/shipa-agent-general created
clusterrolebinding.rbac.authorization.k8s.io/shipa-agent-autodiscovery-shipa-controller created
clusterrolebinding.rbac.authorization.k8s.io/shipa-agent-autodiscovery-helm created
clusterrolebinding.rbac.authorization.k8s.io/shipa-agent-containermetrics-busybody created
clusterrolebinding.rbac.authorization.k8s.io/shipa-agent-containermetrics-helm created
role.rbac.authorization.k8s.io/shipa-agent-general created
role.rbac.authorization.k8s.io/shipa-agent-autodiscovery-shipa-controller created
rolebinding.rbac.authorization.k8s.io/shipa-agent-general created
rolebinding.rbac.authorization.k8s.io/shipa-agent-autodiscovery-shipa-controller created
service/shipa-agent-api created
deployment.apps/shipa-agent created

While our agents are deployed and the connection is established, you can monitor the process locally by running the command kubectl get pods -n shipa -w into your terminal. Wait until all pieces are in a "Running" status.

$ kubectl get pods -n shipa
NAME                                READY   STATUS    RESTARTS   AGE
shipa-agent-5879fb7954-wtp44        1/1     Running   0          3m9s
shipa-busybody-rgdgk                1/1     Running   0          2m53s
shipa-controller-6ccf95854d-cfdtp   1/1     Running   0          2m56s

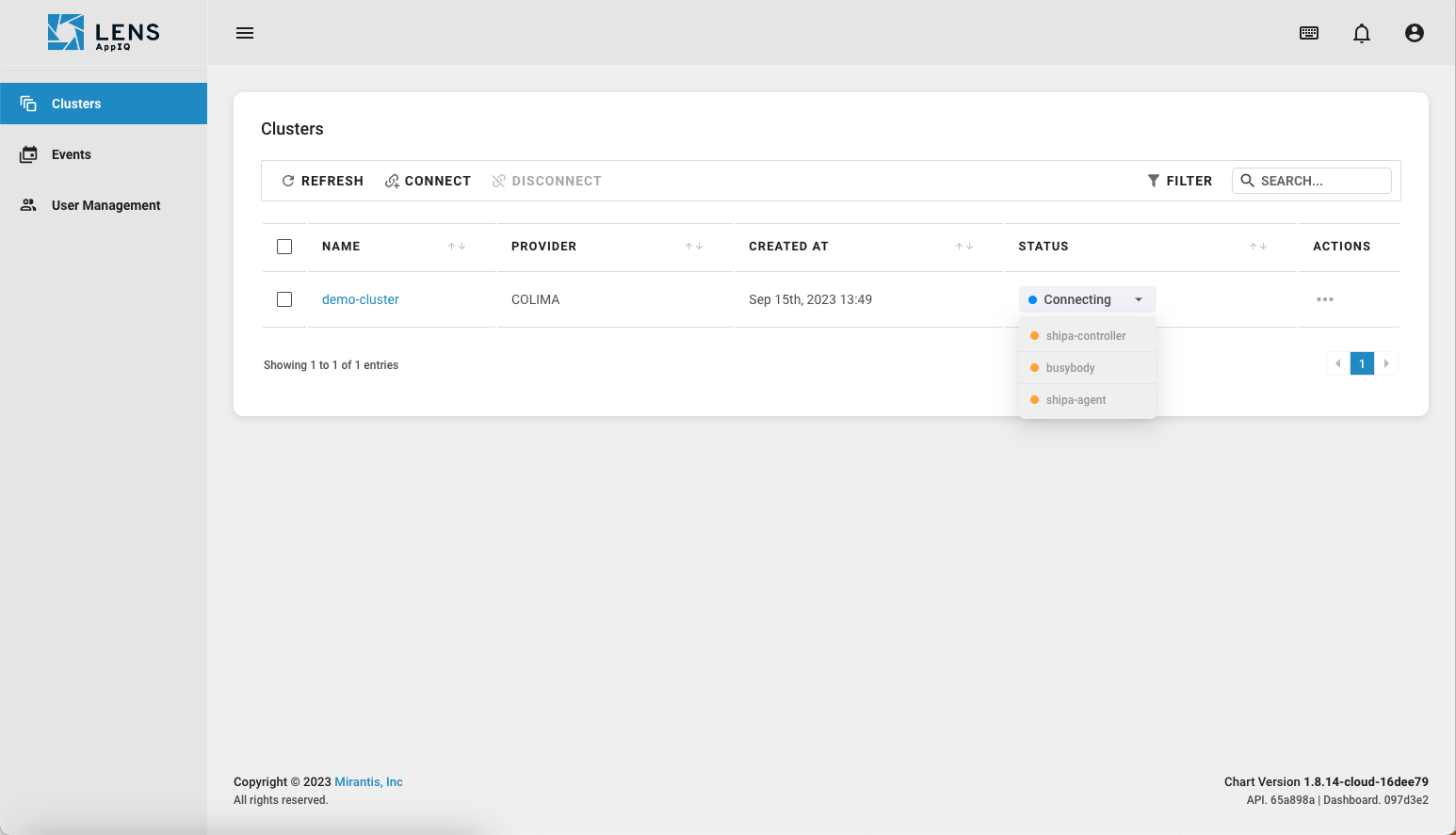

At this point in time, you should see your cluster in the dashboard in a Connecting state. Hover over the status dropdown to see which pieces of the control plane are Running already and which ones are still Pending to be installed.

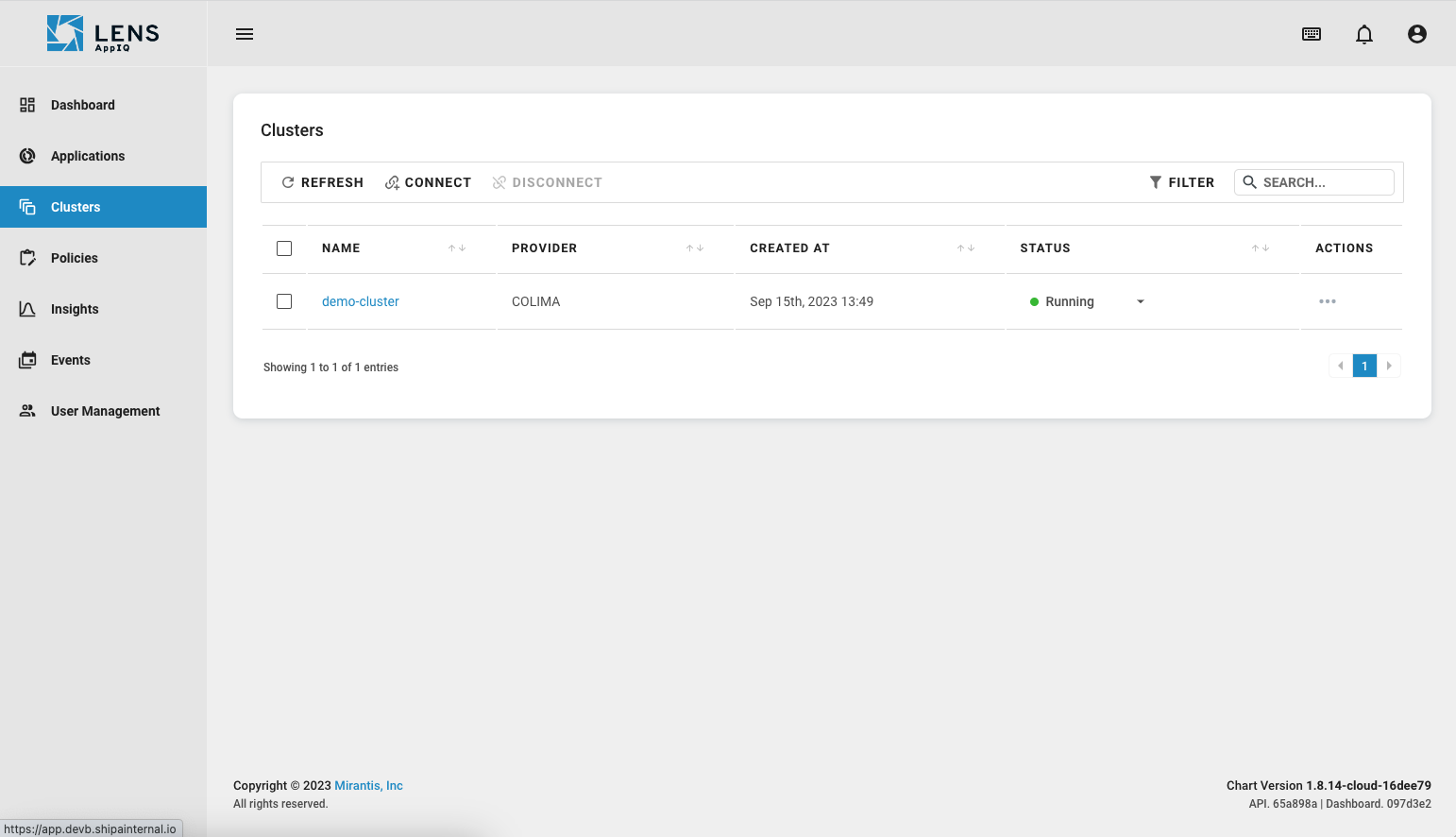

Once the installation of the control plane is finished, your cluster should appear on the Cluster list page with a Running status.

Now you are ready to manage your applications using Lens AppIQ.

Application Management

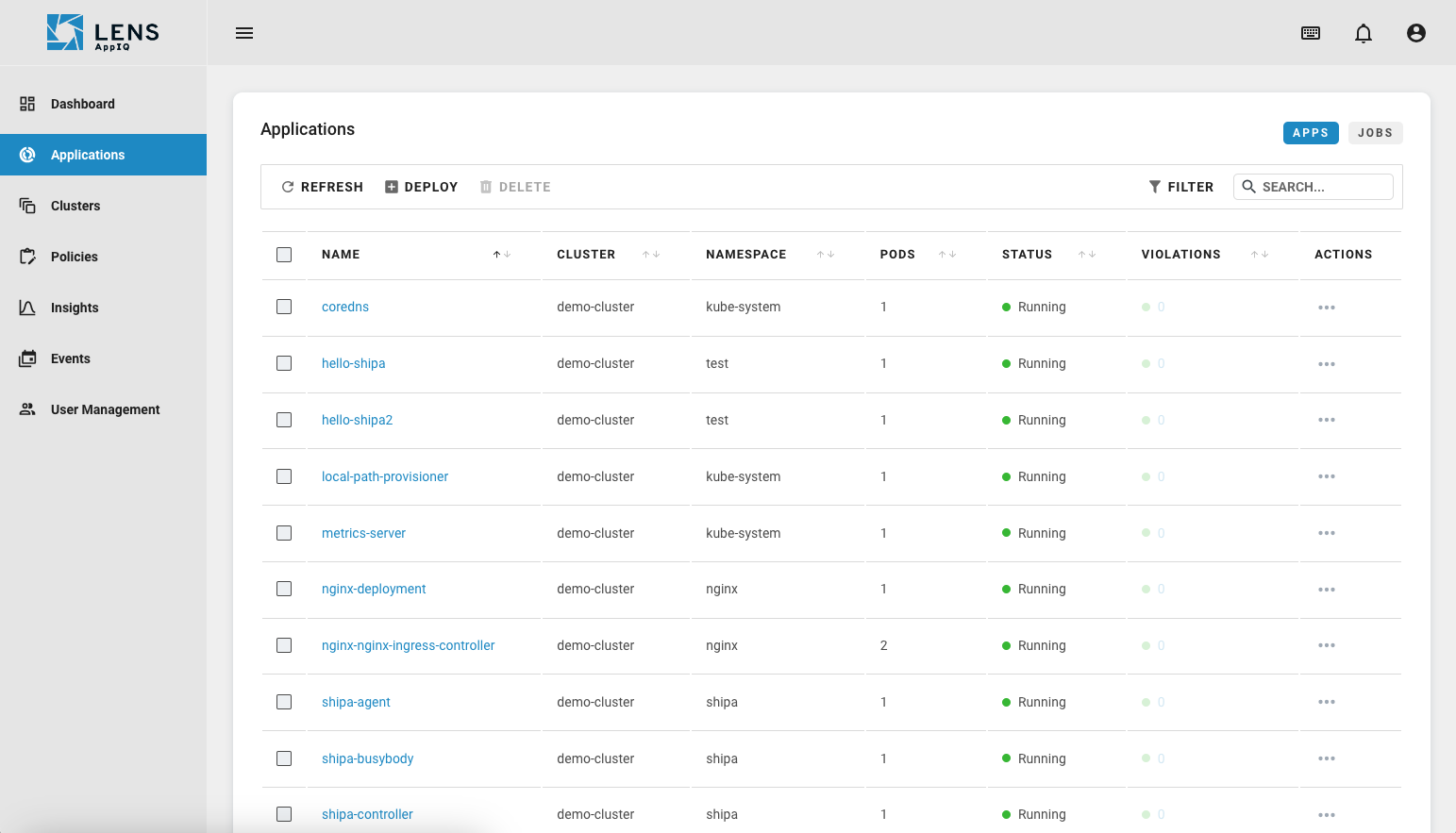

After you connect your cluster, Lens AppIQ scans your cluster and lists all your applications across all namespaces under its Application menu.

Click on an Application and click on "View Map," and you can take a look at your workload's dependencies in a Lens AppIQ Application Map.

You are now well on your way to managing your applications: e.g., you can troubleshoot your applications by looking at their metrics, logs, setup webhooks, attach policies to specific namespaces, and more.

Continue Learning

A great next step would be to install the Lens AppIQ CLI e.g Install Lens AppIQ Client

brew tap shipa-corp/cli

brew install lapps-cloud-cli

lapps login

📘

Lens AppIQ OAuth/SSO CLI Authentication

To wire the CLI to SSO, head to Settings then your token for Single Sign On CLI lapps sso login <token>
